Magnetic Lock Bracket Installation Guide

Series	Example	System Version
Magnetic Locks	ASF280A	NA

NB: The firmware version is based on the latest version when this document was created and may slightly differ from future versions, however, this will not affect any of the functionality.

——————————————————————————————————————————————

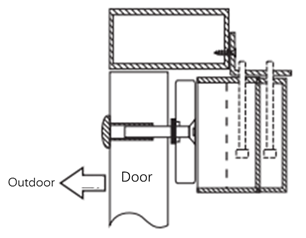

• L- type bracket installation

When the width of the door frame is less than 42mm, there is not enough width to install the magnetic lock suction plate, an additional L-shaped bracket is required.

• ZL-type bracket installation

In the case of inward-opening doors, the ZL-type mounting bracket is required when installing the lock body on the inside of the door.

• U- type bracket installation

Glass door installation magnetic lock requires an additional U-shaped mounting bracket (for 10-15mm thick glass doors).

• Suction plate mounting slot bracket

If the door is extremely thick, the suction plate should be used to install the slotted frame.
