Magnetic Lock Installation Guide

Series	Example	System Version
Magnetic Locks	ASF280A	NA

NB: The firmware version is based on the latest version when this document was created and may slightly differ from future versions, however, this will not affect any of the functionality.

——————————————————————————————————————————————

Disassemble the Magnetic Door Catch

Before installing the door magnetic lock, the cover plate and lifting bar must be disassembled

• Unscrew the screw and lift the cover.
• Unscrew the tamper-proof bolts with a hex wrench.
• Loosen the bottom bolt with a hex wrench.
• Lifting bar for unlocking.

Install the Door Magnetic Lock

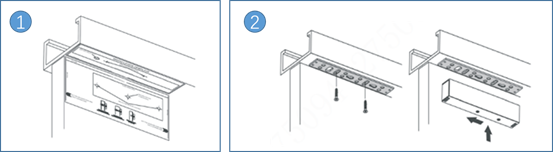

• Take out the installation sticker, fold the cardboard along the dotted line and place the cardboard in the position where you need to install the lock, and then mark the place that needs to be punched and punch it.
• Attach the lock body sling bar to the door frame with screws, and then insert the hexagonal screw into the magnet to attach the lock body to the sling bar.

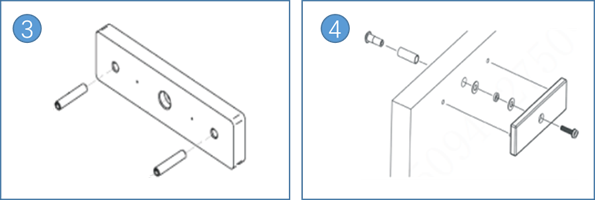

• Using a hammer, gently tap the two retaining pins onto the suction plate.
• Use suction board paper to fix the door frame, make marks and punch holes, and install the suction board on the door, don't tighten the screws first, make sure the suction board can move.

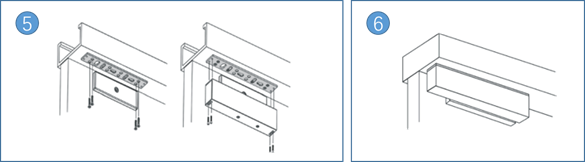

• Tighten the lock body and suction plate to keep the lock body parallel to the suction plate so it can be completely sucked into place.
• Open the cover, wire it according to the instructions, and close the door to test whether the magnetic lock can be fully absorbed.
