MPT320 Factory Reset

series	model
Mobile Portable Terminal	MPT320

This guide is for MPT320 factory reset in case the device password is forgotten.

Below is the YouTube video link to the guide:

https://youtu.be/I923s2rOuRA

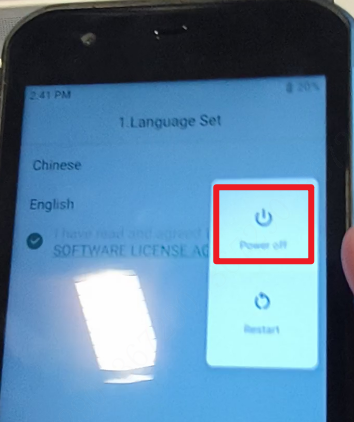

Step 1:

Keep pressing the power button to turn off the device.

Step 2:

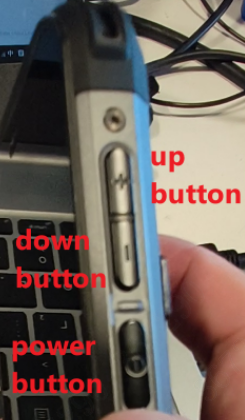

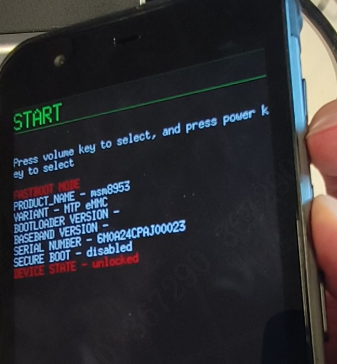

Keep pressing down and power buttons together till the background interface shows up.

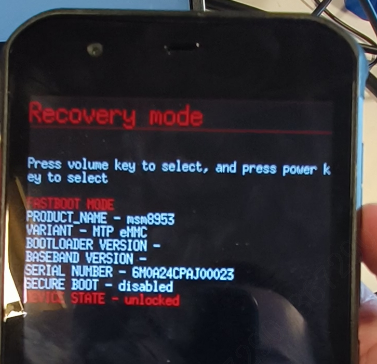

Step 3:

Use up and down buttons to select 'recovery mode'. Press the power button to confirm.

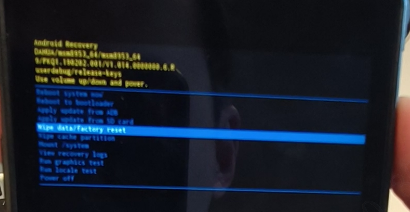

Step 4:

Use up and down buttons to select 'wipe data/factory reset'. Press the power button to confirm.

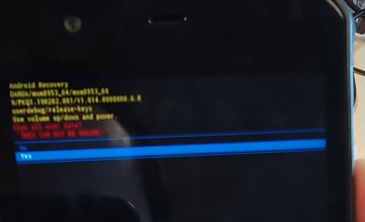

Step 5:

Use up and down buttons to select 'Yes'. Press the power button to confirm.

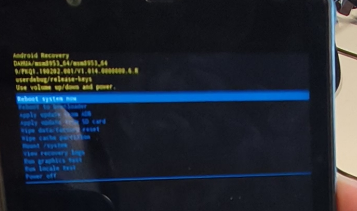

Step 6:

Select 'reboot system now'. Press the power button to confirm. All the data and settings will be cleaned up after reboot.
