How to test NVR POS function with your PC

Series	Example	System Version
NVR5000-4KS2 Series	NVR5416-16P-4KS2	4.002.0000000.6R Build Date: 2022-11-15

NB: The firmware version is based on the latest version when this document was created and may slightly differ from future versions, however, this will not affect any of the functionality.

________________________________________________________________________________________________________________

Step 1: POS setting on NVR:

Go to 'POS' section. Select 'POS setting' on the left hand side. Input the IP address of your PC as the source IP.

Step 2: Add a printer to PC:

1. Go to Settings -> Printers & scanners -> Click on add a printer or scanner -> click on 'The printer that I want isn't listed'.

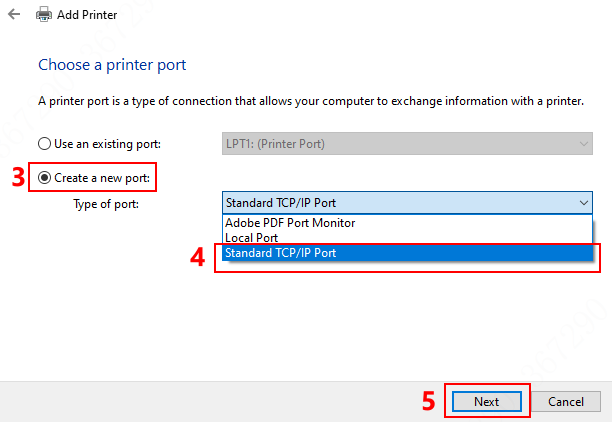

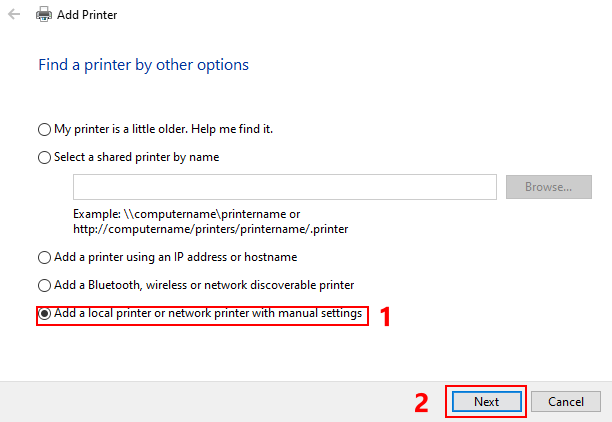

2. Click on 'Add a printer with manual settings' -> Create a new stand TCP/IP Port.

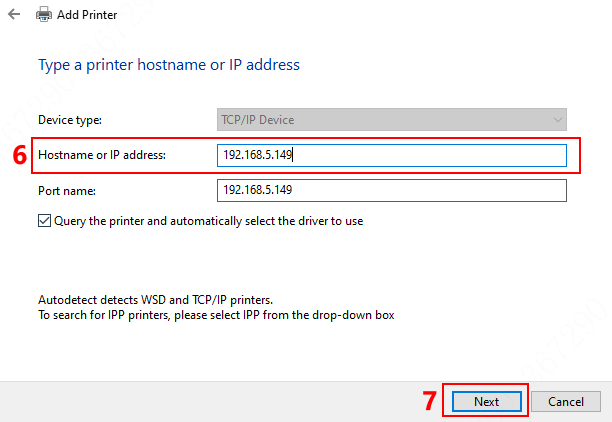

Set the IP address as the IP of the NVR. -> Config the port number to 38800.

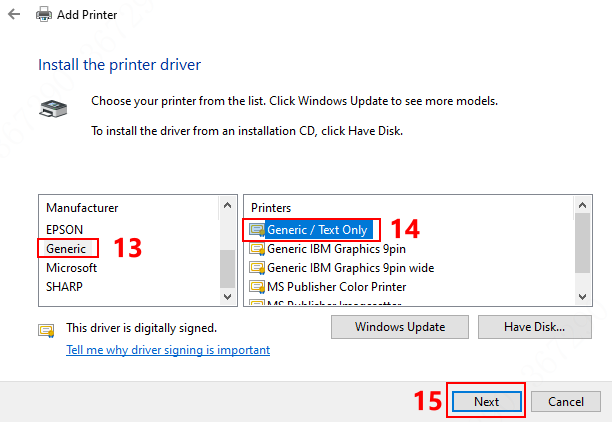

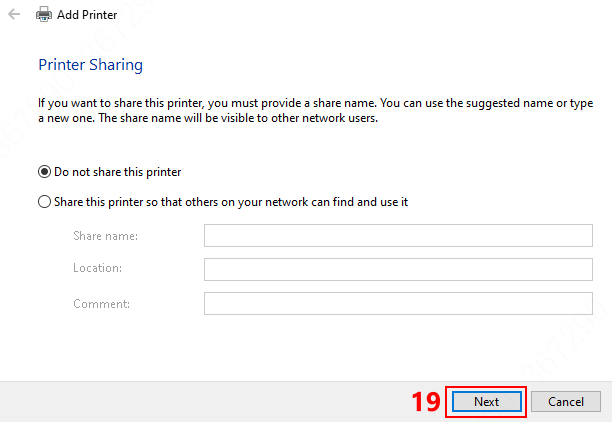

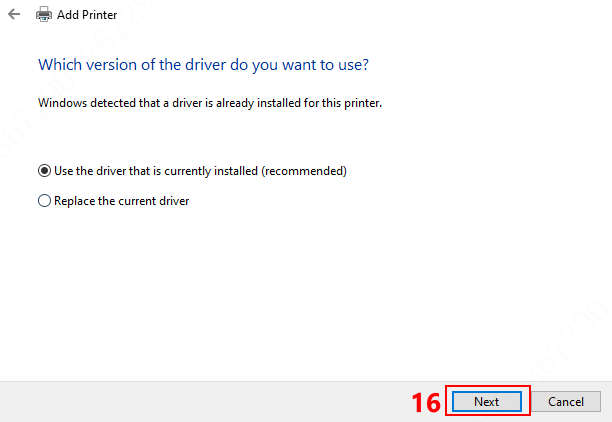

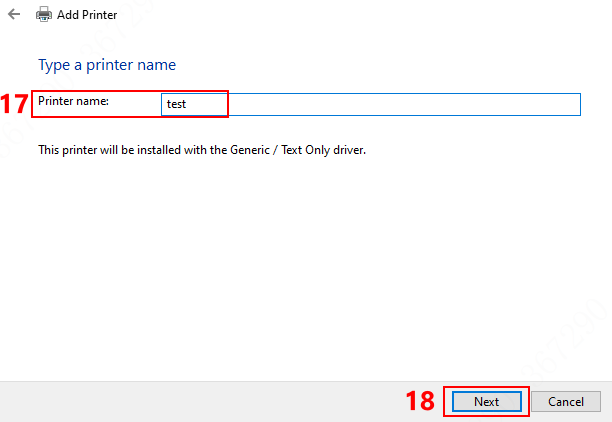

Select the printer as Generic / Test Only type. -> Use the driver installed currently. -> Give the printer a name. -> Select 'Do not share the device'.

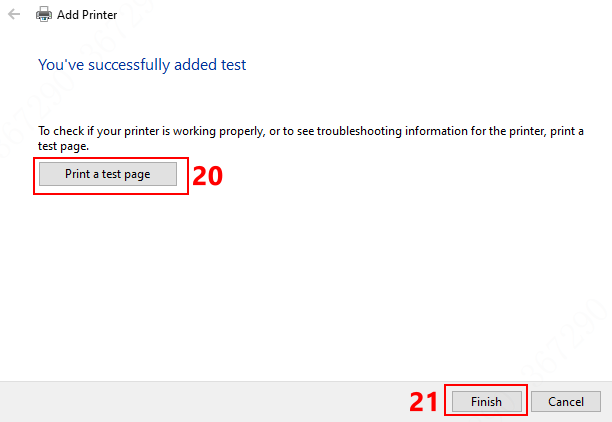

Click on Print a test page and you will get a message printing on the camera live view.

(Edited by Yuchen Luo)
